NSL 2.5 - Large Bag
CODE
NSL2.5CB36M
BQ STAGE LIFT 2.5T - 36M CHAIN BAG XXL 15*11*50
4 x 12 load chain
36m (118ft) @ 75%

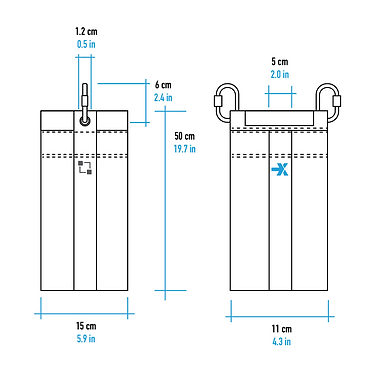

LINE DRAWING (not in scale)
The large chain bag, designed for the NSL2.5 StageLIFT chain hoist, accommodates a 4 x 12 type of chain. The chain bag features drainage holes to prevent water accumulation, and reinforced rubber protections on the front and back to safeguard the opening. The connection to the hoist bracket is facilitated by two 6 x 58 mm quick links. To enhance the loading capacity, the two straps criss-cross at the bottom.
BELT
- Polypropylene 5cm belt
- 25-27% elongation value
- 240 filaments
- 1100 kg Minimum Breaking Point
- 175 ° Celsius melting point
FABRIC
- 840 Nylon PVC Coated
- 28-31% elongation value
- Test UNI ISO 13934-1:200
- N 502 medium breaking load value
- Test UNI 4818:1992 p.te 9
MEASUREMENTS
Opening: 11x15 cm
Length: 50 cm
CAPACITY
4 x 12 load chain
24m @ 50% | 36m (118ft) @ 75% | 48m @ 100%
