Hand Chain Hoist Chain Bag Small


CODE

RSCBH100

DESCRIPTION

Chain Blocks Chain Bags are bucket type bags for upright or inverted hand chain hoist use.
They are held by one high resistance polyester strap which takes the weight of the chain and distributes it over the upper metal frame. Spring loaded safety clip CE compliant and BiQuadro marked snap hook.
Bucket opening and chain bag capacity allows to fit indicatively 12m load chain and 11m of hand chain, leaving enough space to put the chain block inside of the chain bag, for simple and easy transportation or storage.

TECHNICAL DATA

BELT

- Polypropylene 5cm belt
- 25-27% elongation value
- 240 filaments
- 1100 kg Minimum Breaking Point
- 175 ° Celsius melting point

FABRIC

- 840 Nylon PVC Coated
- 28-31% elongation value
- Test UNI ISO 13934-1:200
- N 502 medium breaking load value
- Test UNI 4818:1992 p.te 9

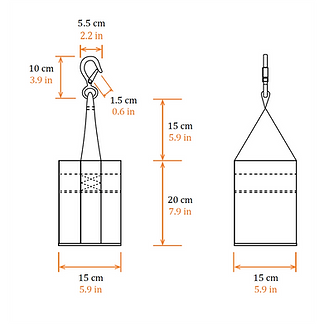

MEASUREMENTS

Opening: 15 cm diameter
Length: 20 cm

SWL: 40 kg - 88 lbs
Weight: 0.50 Kg
Volume: 7.5 x 20cm
Carton box: 1 pcs in a 31x19x10 cm

CAPACITY

1 - 250kg Hand Chain Block
12m of Load Chain and 11m of Hand Chain
